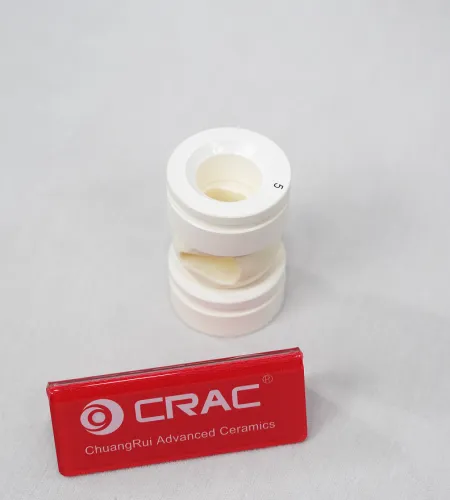

Ceramic Valve Core: Innovations in Fluid Dynamics

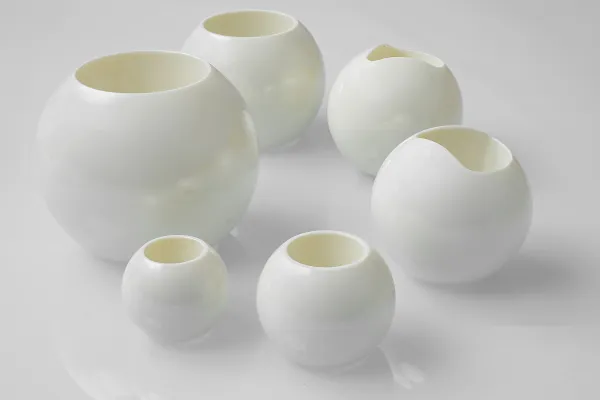

A precision zirconia ceramic valve core is quantified by its geometric accuracy and surface integrity. Key parameters include: Dimensional Tolerances (e.g., ±0.001mm on critical diameters and concentricity), Sphericity/Roundness (for ball cores, often Grade 10 or finer per ISO 3290), Surface Finish (Sealing surfaces lapped to Ra < 0.05 μm for mirror-like contact), and Flatness (for seating surfaces, measured in light bands). At CRAC, “precision” means these parameters are not just measured, but guaranteed and certified for each batch, ensuring predictable mating and performance.

This component is indispensable where fluid control directly correlates to product yield, data accuracy, or system safety. Primary sectors are: Semiconductor Manufacturing: For gas and chemical delivery systems (CVD, etch, cleaning) where particle generation and leakage are catastrophic. Analytical & Medical Instrumentation: In HPLC, mass spectrometers, and fluidic systems requiring pulse-free, precise metering. Aerospace & Defense: For fuel control, hydraulic actuation, and life-support systems demanding extreme reliability. High-Precision Pneumatics/Hydraulics: In automation and robotics where response time and positional accuracy are critical. Any application where control, not just containment, is the goal.

Precision is the multiplier of performance. Leak Rate: A perfectly mated, ultra-smooth sealing surface achieves helium-grade leak-tightness (< 1 x 10⁻⁹ atm·cc/sec). Actuation Force & Hysteresis: Consistent geometry and low friction ensure smooth, repeatable operation with minimal and stable actuation torque across the service life. Lifetime & Consistency: Unlike metals that deform or wear-in, the precision geometry of a CRAC precision zirconia ceramic valve core remains stable. This means the valve’s flow characteristics and shut-off position do not drift over time, guaranteeing long-term performance identical to day one.

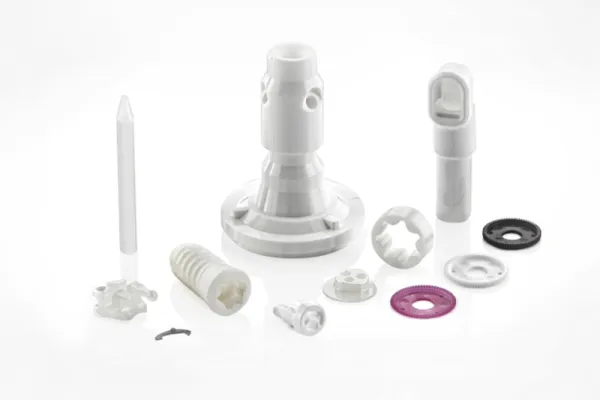

Yes, our expertise extends into advanced ceramic machining. Beyond simple balls or seats, we can manufacture precision zirconia ceramic valve cores with intricate features: multi-port configurations, internal micro-channels, tapered sealing profiles, and custom engagement geometries. Using diamond grinding and ultrasonic machining post-sintering, we achieve these features while maintaining the critical tolerances and surface finishes. We collaborate closely with valve designers to produce cores that are drop-in solutions or enable next-generation valve architectures.

Verification is integral to our manufacturing process, not a final step. We employ metrology equipment that matches the precision we aim to produce: Coordinate Measuring Machines (CMM) for 3D dimensional analysis, non-contact optical profilometers for surface finish and flatness, laser micrometers for diameter, and high-magnification visual inspection for defects. Each precision zirconia ceramic valve core in a critical batch is often 100% inspected against its master drawing. The result is a documented pedigree of quality, providing you with the data-driven confidence required for high-reliability applications.

To provide an accurate solution, we require: 1) Detailed Engineering Drawings: With clear indications of critical dimensions, tolerances, and geometric tolerances (concentricity, perpendicularity). 2) Material Specification: Desired zirconia grade (e.g., 3Y-TZP, 5Y-TZP) and any special purity requirements. 3) Application Context: Fluid media, pressure, temperature, and cycle life expectations. 4) Performance Requirements: Target leak rate, actuation torque, or flow coefficient (Cv). With this information, CRAC’s engineering team can assess manufacturability, recommend optimizations, and provide a firm quote for your precision zirconia ceramic valve core, ensuring it is engineered for success in your system.
