Revolutionizing Ultra-Fine Milling: The Strategic Value of Nano Zirconia Beads by CRAC
In the modern industrial landscape, achieving sub-micron or even nanometer particle sizes is no longer just a competitive advantage—it is a necessity. Many manufacturers face the grueling challenges of high energy consumption, frequent equipment downtime, and critical material contamination during the milling process. These bottlenecks often stem from using inferior grinding media that cannot withstand the rigors of high-intensity dispersion.
How can your production line achieve higher purity while simultaneously reducing operational costs? The answer lies in the selection of precision-engineered media. This guide serves as a comprehensive resource to help you understand how nano zirconia beads act as the ultimate catalyst for efficiency in advanced material processing.
What You Will Learn in This Guide:
- The scientific composition and advantages of nano zirconia beads.
- Step-by-step strategies for optimizing grinding performance.
- How CRAC solutions ensure zero-contamination for sensitive materials.
Foundational Knowledge: Understanding Nano Zirconia Beads

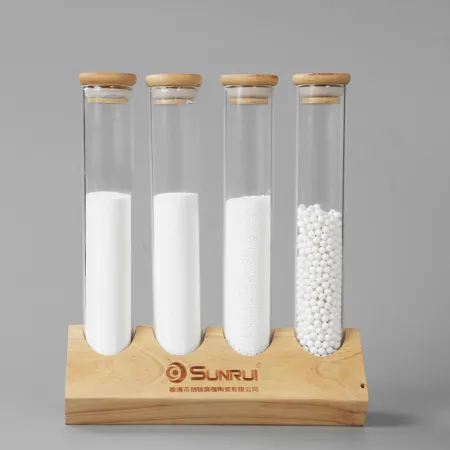

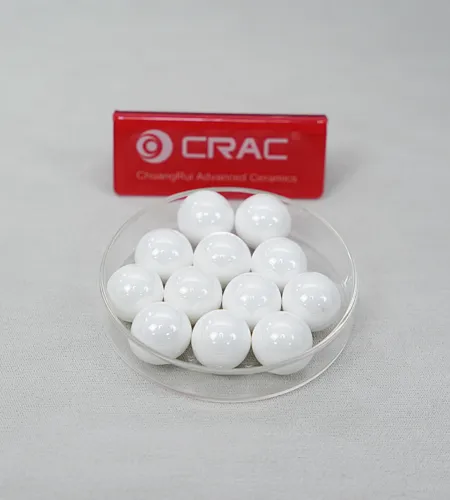

Nano zirconia beads, specifically those stabilized with Yttria (Y2O3), are high-density, ultra-wear-resistant grinding media designed for high-energy bead mills. Unlike standard ceramic balls, these beads feature a refined internal crystalline structure that provides exceptional fracture toughness.
At CRAC (Chuangrui Advanced Ceramics), our nano zirconia beads are manufactured using a proprietary titration process in electrolyte, ensuring perfect sphericity and a smooth surface finish. This reduces friction and minimizes wear on both the media and the mill components.
Key Properties:
- Specific Gravity: >6.0 g/cm3
- Hardness (Hv10): >1250 kg/mm2
- Purity: 95% ZrO2 + 5% Y2O3
- Sizes available: From 0.05mm to 3.0mm
Optimization Strategy: How to Maximize Efficiency
Selecting the right nano zirconia beads is only the first step. To truly overcome dispersion bottlenecks, follow this three-stage methodology developed by CRAC experts:
Stage 1: Media Sizing Selection
For ultra-fine grinding, the size of the bead should generally be 20-30 times the initial particle size of the raw material. If you are targeting a D90 of 100nm, using our 0.1mm nano zirconia beads is optimal.
Stage 2: Filling Ratio Control
Optimal filling ratios typically range from 70% to 85% of the mill chamber volume. High-density nano zirconia beads allow for higher kinetic energy transfer, meaning you can achieve the same results in 40% less time compared to alumina media.
Stage 3: Contamination Prevention
In industries like lithium battery materials, metal contamination is a failure point. CRAC ensures that our beads have a self-wear rate of less than 1ppm, maintaining the highest chemical purity of your slurry.
The CRAC Edge: Why Leading Manufacturers Trust Us
With over a decade of experience in advanced ceramic technology, CRAC (Chuangrui Advanced Ceramics) has supported hundreds of global clients in sectors ranging from semiconductors to pharmaceuticals.
Certified Quality
Our production facility is ISO 9001 certified, and every batch of nano zirconia beads undergoes rigorous laser particle size analysis and wear-resistance testing.
Customized Solutions
From composite ceramic components to specialized bead sizes, we offer tailormade solutions to fit your specific mill model.
Technical Support
Our engineering team provides free consultation on milling parameters to help you reduce your "Total Cost of Ownership."
Frequently Asked Questions (FAQ)
Q: How do I know if CRAC nano zirconia beads are compatible with my bead mill?
A: Our beads are compatible with all major horizontal and vertical sand mills. We recommend checking your mill's screen separator gap; the bead diameter should be at least 1.5 to 2 times the gap size.
Q: Do you provide free samples for testing?
A: Yes! At CRAC, we believe in the quality of our products. We offer free samples (up to 500g for specific sizes) for qualified industrial clients to conduct laboratory trials before bulk purchasing.
Q: What is the typical lead time for international orders?
A: Standard sizes of nano zirconia beads are kept in stock and can be shipped within 3-5 business days. Custom orders or large bulk shipments typically take 2-3 weeks.
Ready to Elevate Your Grinding Precision?
Download our Technical Manual or request your Free Sample today.
Email: crac@crac-cn.com | Website: www.crac-cn.com
© 2026 Chuangrui Advanced Ceramics (CRAC). All Rights Reserved.
Frequently Asked Question
Do you have any question?
Nano zirconia beads offer a unique combination of extreme hardness (often above 1200 HV), exceptional wear resistance, and high density. This translates to faster grinding kinetics, superior particle size reduction into the sub-micron and nano range, and drastically reduced media wear. The latter point is critical—low wear means zero metallic contamination and consistent milling performance over time, protecting your product purity and your bottom line.
Any industry requiring ultrafine, contamination-free grinding is an ideal candidate. Nano zirconia beads are the gold standard in lithium battery cathode/anode material production, electronic ceramics, high-end inks and pigments, and pharmaceutical formulations. In these sectors, particle size distribution and purity are directly linked to product performance, safety, and efficiency.
Selecting the optimal bead size is a function of your target final particle size and the viscosity of your slurry. A general rule is to use beads 20-30 times larger than your desired end particle. For true nano-grinding (sub-100nm), nano zirconia beads in the 0.1mm to 0.3mm range are typically employed. Our technical team at CRAC can provide application-specific recommendations to maximize your mill's efficiency.
For most high-performance applications, yes. Yttria stabilization transforms the zirconia crystal structure, granting it superb fracture toughness and thermal shock resistance. This prevents catastrophic bead failure during high-energy milling. Yttria-stabilized nano zirconia beads from CRAC are engineered for durability, ensuring a long service life even under the most aggressive grinding conditions.
Look for a manufacturer with proven expertise in advanced ceramics and strict quality control. CRAC, with nearly two decades of specialization, controls the entire process from raw material purity to final sintering. We guarantee consistent sphericity, narrow size distribution, and declared chemical composition for every batch of nano zirconia beads, providing the reliability your process demands.
Absolutely. While exceptional for comminution, their ultra-smooth, dense surface makes nano zirconia beads equally effective for high-shear dispersion (breaking down agglomerates) and fine polishing applications. Their chemical inertness ensures they won't react with sensitive formulations in coatings, cosmetics, or CMP slurries.
